1. Product Overview

2. Key Specifications (mm)

3. Core Features

• Union – Facilitated Installation: The built – in union connection allows for tool – free, rapid connection and disconnection with the main pipeline. This cuts down installation time by 40% and makes maintenance a breeze, as there’s no need to cut pipes.

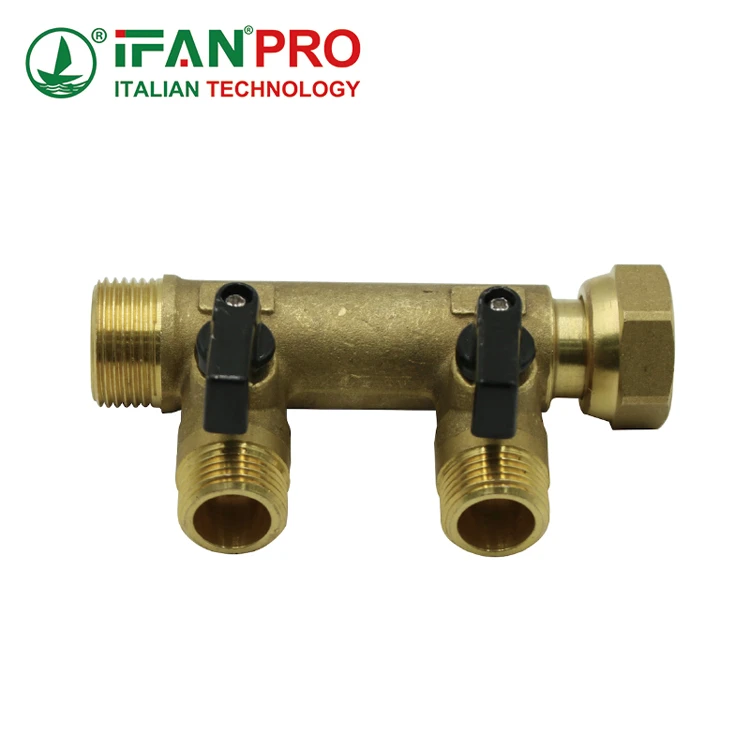

• Independent Ball Valve Regulation: Each branch is outfitted with a compact ball valve featuring a black lever. This enables instant on – off control for individual circuits. For example, a faulty heating zone can be isolated without halting the entire system.
• Brass – Based Durability: Constructed from corrosion – resistant brass, it can endure harsh water conditions (including chlorinated water) and mechanical stress, guaranteeing a service life of over 15 years.
• Reduced Bore Design: The transition from a 3/4″ main inlet to 1/2″ branch outlets optimizes flow distribution, ensuring balanced pressure across 2–5 circuits for consistent performance.

4. Application Scenarios

• Underfloor Heating Systems: Distributes hot water to 2–5 heating zones. Independent valve control allows for personalized temperature adjustment and energy conservation.
• Fontanería comercial: Manages the water supply to multiple fixtures like restroom sinks and kitchen appliances in hotels or offices, facilitating targeted maintenance.
• Industrial Cooling Loops: Controls the distribution of coolant in machinery with 2–5 parallel cooling circuits, preventing overheating and simplifying system upgrades.

5. Competitive Advantages

• Maintenance Efficiency: The union design does away with the need for soldering or threading during repairs, reducing system downtime by 60% compared to traditional manifolds.
• Visual Control Clarity: The black lever valves offer clear indications of whether they are open or closed, minimizing operational mistakes in complex setups.
• Scalability: Available in configurations with 2–5 circuits, it can adapt to projects of all scales, from small homes to large commercial buildings.
• Leak – Proof Integrity: Precision – machined valve seats and union seals ensure no leakage, which is crucial for pressurized systems such as hydronic heating.

Enhance Multi – Circuit Flow with the 108 Manifold Mold
