Product Overview

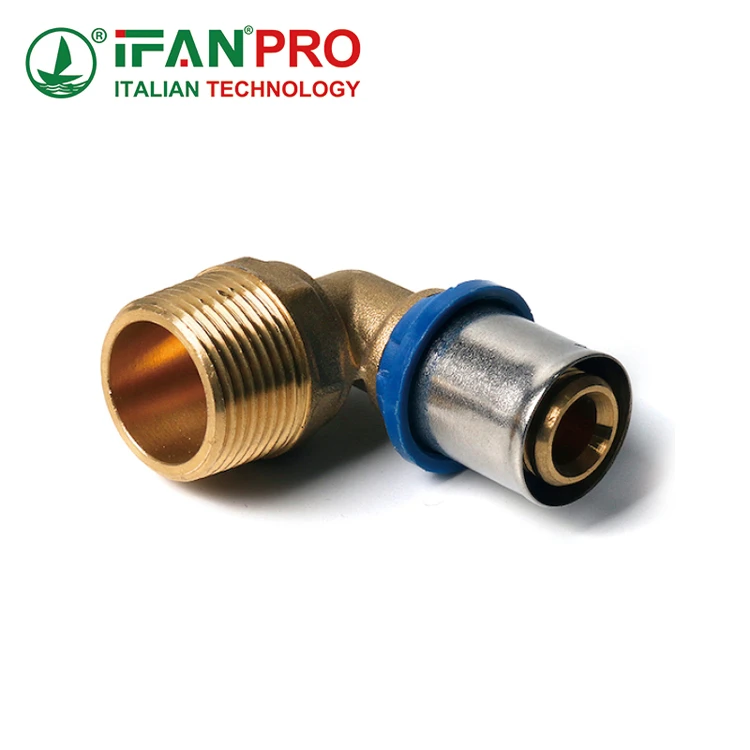

The IFANPRO Male Elbow – 121UC is a precision-engineered plumbing component designed for 90° connections between PEX pipes and male-threaded fixtures. Its robust construction features a brass male-threaded port (ensuring compatibility with standard fixtures) and a PEX-compatible socket (for secure pipe connections), making it ideal for residential, commercial, and light industrial applications. This elbow simplifies pipeline installations while delivering long-term reliability in fluid control systems.
Categories PEX Pipe And Fittings, Uncategorized
Prodcuts Description
Products Image
Products Charts
Reviews
Prodcuts Description
1. Key Specifications (mm)
Model | Connection Type | Dimensions |
---|---|---|
L16×1/2M | 16mm PEX (socket) × 1/2″ male thread | – |
L18×1/2M | 18mm PEX (socket) × 1/2″ male thread | – |
L20×1/2M | 20mm PEX (socket) × 1/2″ male thread | – |
L20×3/4M | 20mm PEX (socket) × 3/4″ male thread | – |
- Material: Brass (male thread) + corrosion-resistant alloy (socket body) + blue EPDM O-ring (sealing).
- Pressure Rating: Up to 16 bar (suitable for high-pressure water, HVAC, and light industrial systems).
- Temperature Range: -20°C to 110°C (adapts to hot/cold fluids, including water, gas, and mild chemicals).
3. Core Features
- Dual-Connection Design:
- PEX Socket: Securely connects to 16mm, 18mm, or 20mm PEX pipes (compatible with crimp, press, or expansion fittings), ensuring a leak-free seal.
- Male Thread: Directly attaches to fixtures with 1/2″ or 3/4″ female threads (e.g., valves, faucets, metal pipes), eliminating adapter needs.
- Leak-Proof Sealing:
- Blue EPDM O-ring provides bubble-tight sealing, critical for potable water, heating, and irrigation systems, resisting pressure fluctuations and environmental stress.
- Durability:
- Brass thread withstands wear, oxidation, and mineral buildup. The outer alloy ensures mechanical strength, offering a 10+ year service life in typical applications.
- Space-Efficient 90° Bend:
- Ideal for tight spaces (e.g., under sinks, behind appliances), creating sharp turns in pipelines without compromising flow efficiency.
4. Applications
- Residential Plumbing:
- Connect PEX lines to male-threaded fixtures like water heaters (L20×3/4M), garden hoses (L18×1/2M), or outdoor faucets (L16×1/2M), ensuring secure, leak-free 90° connections.
- Commercial HVAC:
- Manage coolant/steam flow in ventilation, air conditioning, and hydronic heating systems (e.g., L20×1/2M for medium-scale setups), optimizing space and flow efficiency.
- Industrial Use:
- Regulate fluid flow in irrigation, light machinery, or chemical processing (e.g., L20×3/4M for pump-to-pipeline connections), leveraging brass’s corrosion resistance and threaded adaptability.
5. Why Choose IFANPRO?
- Factory-Direct Quality:
- As a leading Chinese manufacturer (visit ifanpro.com), we offer premium elbows at competitive prices, backed by ISO 9001 and SGS certifications for global compliance.
- Customization & Support:
- OEM/ODM Services: Tailor sizes, threads, or branding to project needs (e.g., custom logos, packaging). 24/7 technical assistance and global shipping (DDP/FOB).
- Global Reliability:
- Trusted by 500+ clients worldwide, with proven performance in diverse climates (e.g., European winters, Middle Eastern heat), ensuring long-term system integrity.
Upgrade Your PEX System with IFANPRO’s Male Elbow – 121UC
Simplify 90° connections between PEX pipes and male-threaded fixtures. Explore our range on ifanpro.com or contact us for samples, quotes, or technical specifications.
Products Image
Q: Are you a manufacture or trading company?
A: Yes. we’re professional manufacture in China,and have been in this field for more than 30 years.
Q: What payment terms do you support?
A: TT,L/C, Western Union,Money Gram areavailable, and for TT we accept 30% deposit inadvance.70% balance against copy of B/L.
Q: How long is your delivery time?
A: 15-30days after receiving deposit.
Q: lt is possible to get samples from your factory?
A: Yes. free samples will be sent if needed, but thefreight can be negotiated or chargeable, it will berefunded after confirmation of the order.
