Specification(mm)	M/Bag
20×2.8×4m	200
25×3.5×4m	140
32×4.4×4m	80

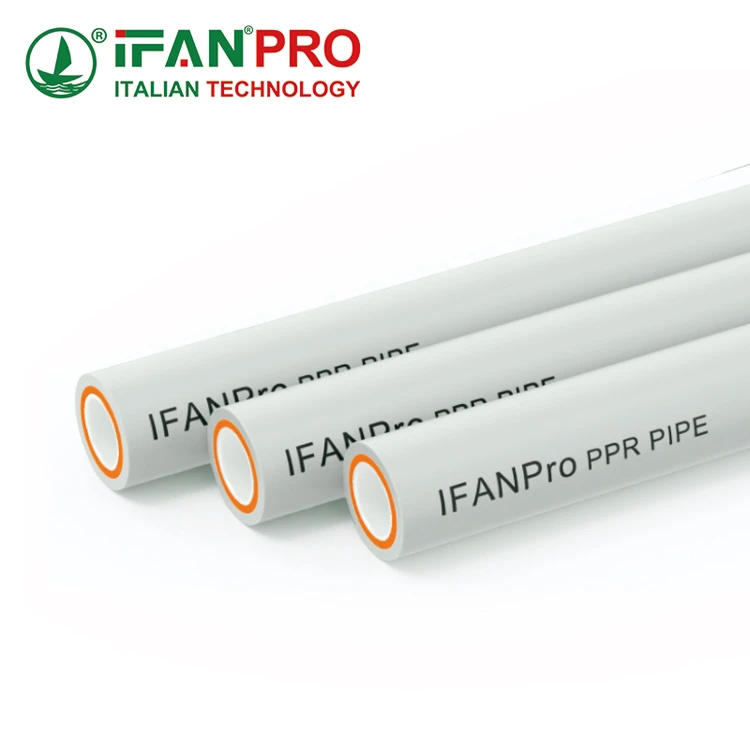

Double-layer PPR pipe (with yellow line) selling point Double-layer structure: The structure is simple but strong,with good impact resistance and durability, suitable for coldwater and normal temperature environments.Strong identification: The yellow line design on the pipe bodymakes it easy to identify hot and cold water pipes, avoidinstallation errors, and is more suitable for on-site operations.Excellent corrosion resistance: Using Korean Hyosungmaterials, corrosion resistance, and ensure clean water quality.

Emplacement de Tuyaux	Insulation thickness (mm), For=0.040 W/(mK)*
Exposed pipes in unheated rooms (such as basements)	4
Exposed pipes in the heating chamber	9
Hose (limited to cold water only)	4
Hose (cold and hot water)	13
Hollow pipe wall, close to the hot pipe	13
Pipes on concrete floors	4

*For other thickness values obtained through conversion, based on pipeline diameter 20 millimetersWhen necessary, it is necessary to fully protect the cold water pipeline.Prevent condensation and heat sources. The installation of cold water pipelines must:Avoid heat sources (such as heat pipes, fireplaces, boilers) unlessIf the pipeline has sufficient insulation to maintain water temperature.
